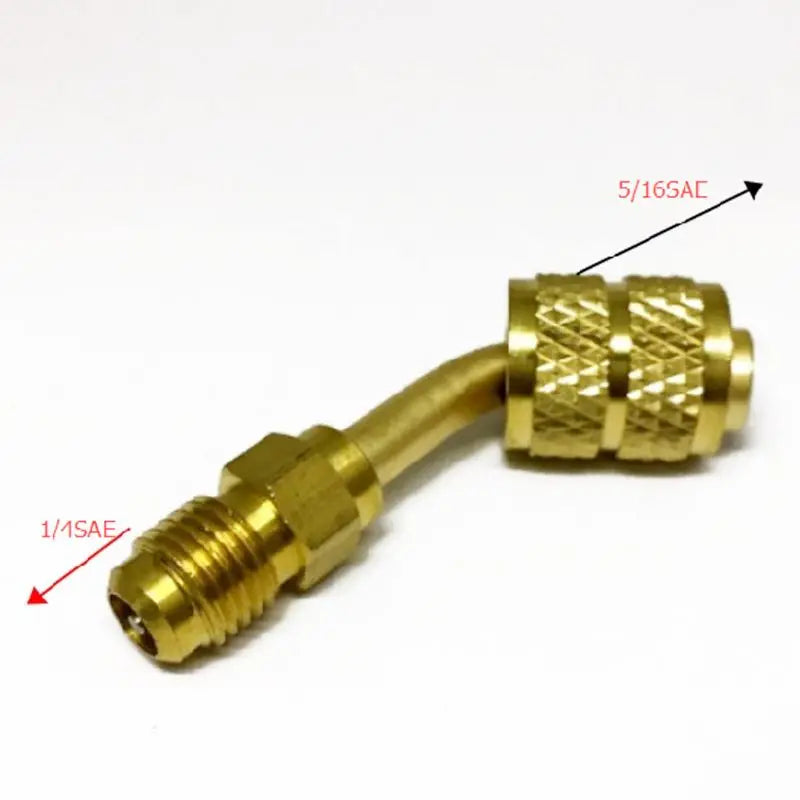

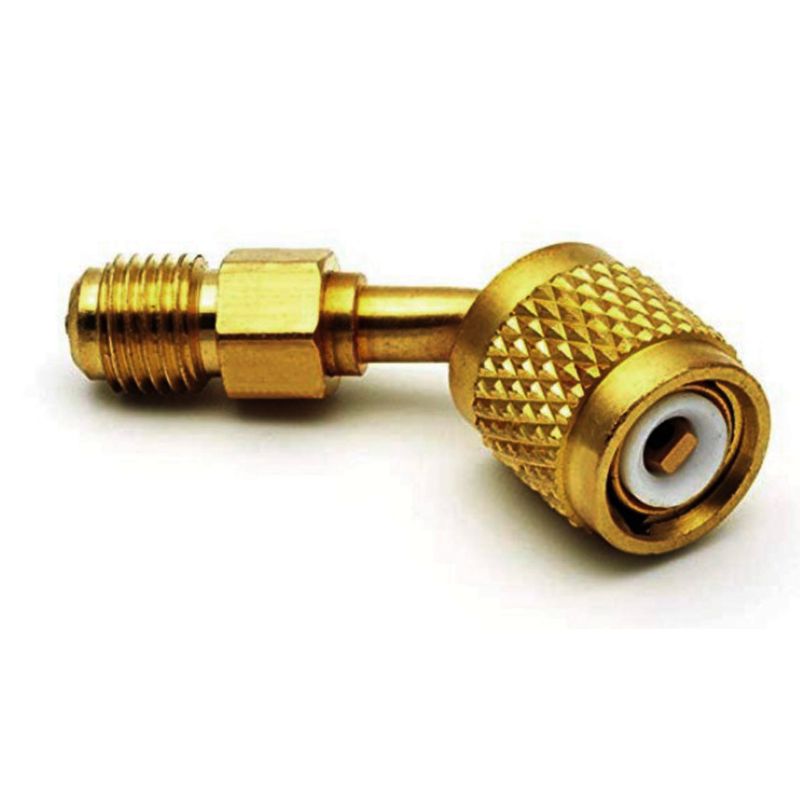

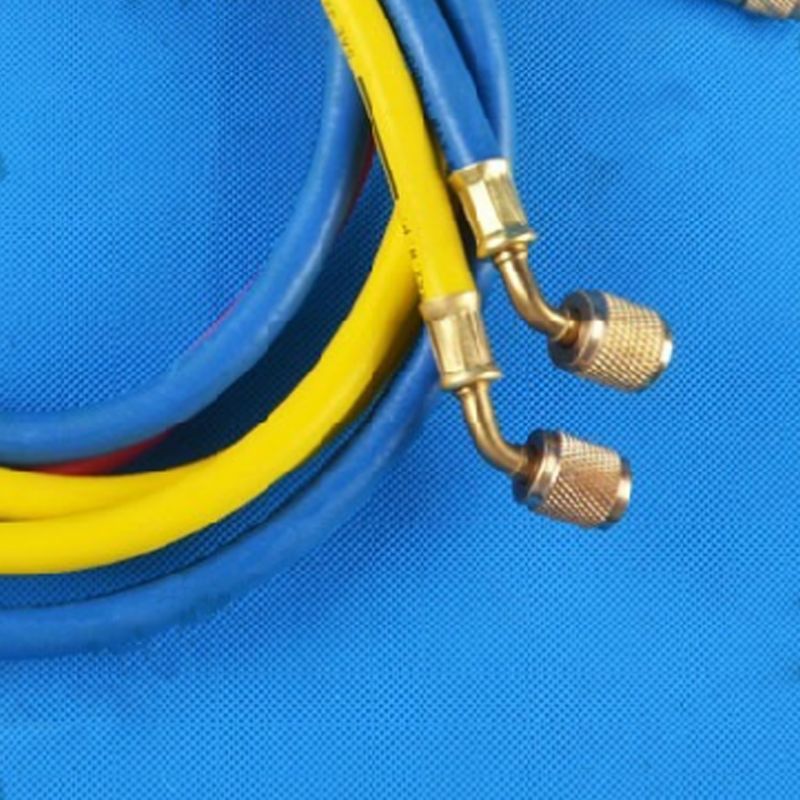

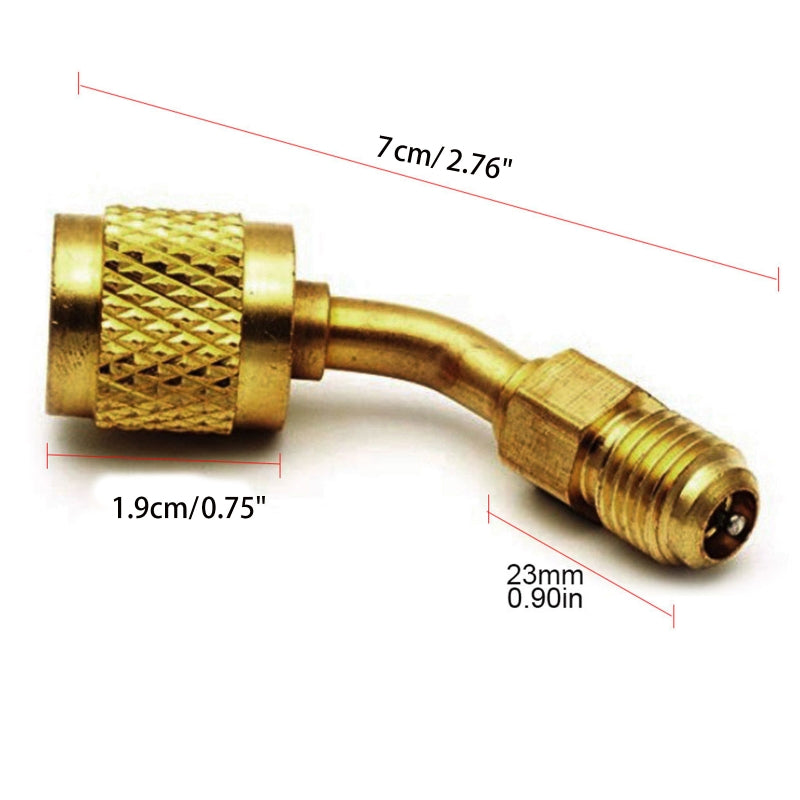

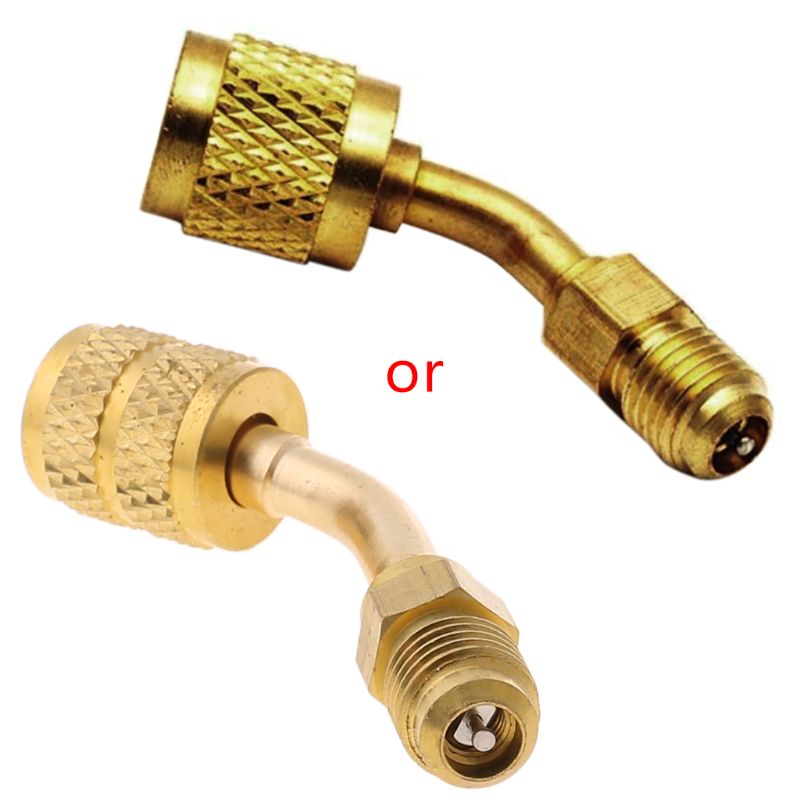

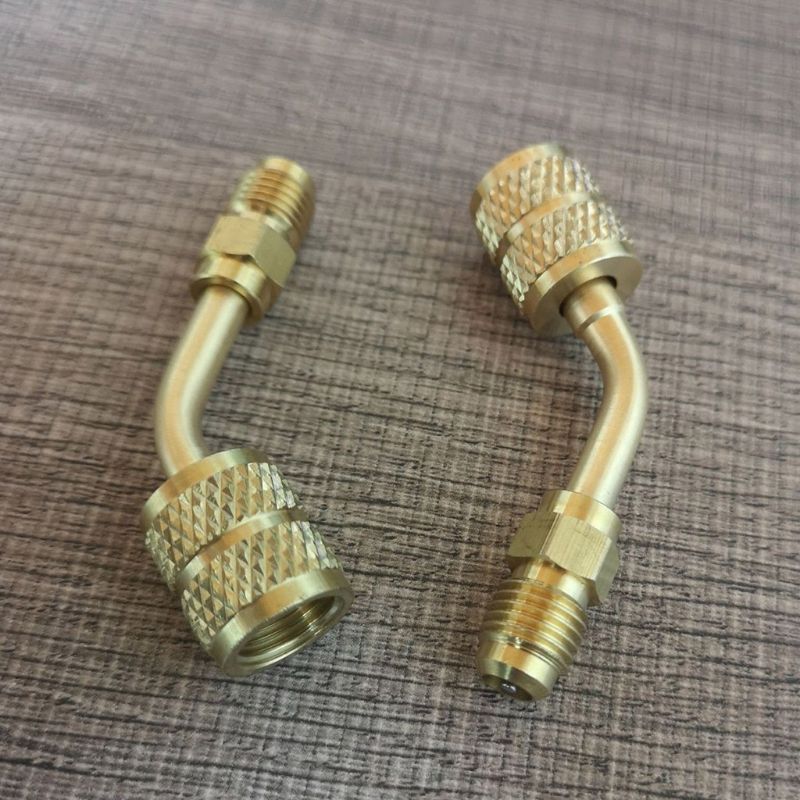

1/4 turn 5/16 conversion head adapter all copper r410 reducer with valve core air conditioning refilling connector
1/4 turn 5/16 conversion head adapter all copper r410 reducer with valve core air conditioning refilling connector
Couldn't load pickup availability
SPECIFICATIONS
Brand Name: NONE
Choice: yes
Country/Region of Car Manufacture: /
High-concerned chemical: None
Infiltration Capacity: /
Inner Diameter: as shown
Interchange Part Number: /
Manufacturer Part Number: /
Material: Fabric Reinforced Hose With Thermoplastic Insulation
Minimum Pulling Force: /
OEM NO.: /
Origin: Mainland China
Other Part Number: /
Outer Diameter: as shown,-
Permeability (kg/m2/Y): /
Special Features: nasic functions
Thickness: /
Thickness Deviation: /
Wetting Rate: /
semi_Choice: yes
type: Conversion adapter
Product description
New R410A Ductless Mini Split Systems are usually equipped with a different charging port size to avoid charging of wrong refrigerant into the system (i.e. R22). This new port size is 5/16" SAE and some gauge sets carry 1/4" SAE connectors. Port adapter converts the 5/16" SAE ports to use with 1/4" SAE gauge sets.
Specification:
Converts the 5/16" SAE charging-Vacuum ports to accept 1/4" SAE gauge-hose set
Used on most newer R410A Ductless Mini Split Systems
Brass construction, with full swivel tip.
5/16" Female, 1/4" Male SAE
Package include:
1x Conversion adapter
