Upgrade your HiFi setup with the 150W Three Way Speaker Crossover Module for HiFi Audio (model WEAH-305). This high-performance crossover splits the audio signal into treble, midrange, and bass bands, delivering a clean, balanced three-way sound for DIY home speaker projects and upgrades.
Key benefits
-
Three-way configuration with dedicated treble, midrange, and bass channels for accurate sound staging.
-

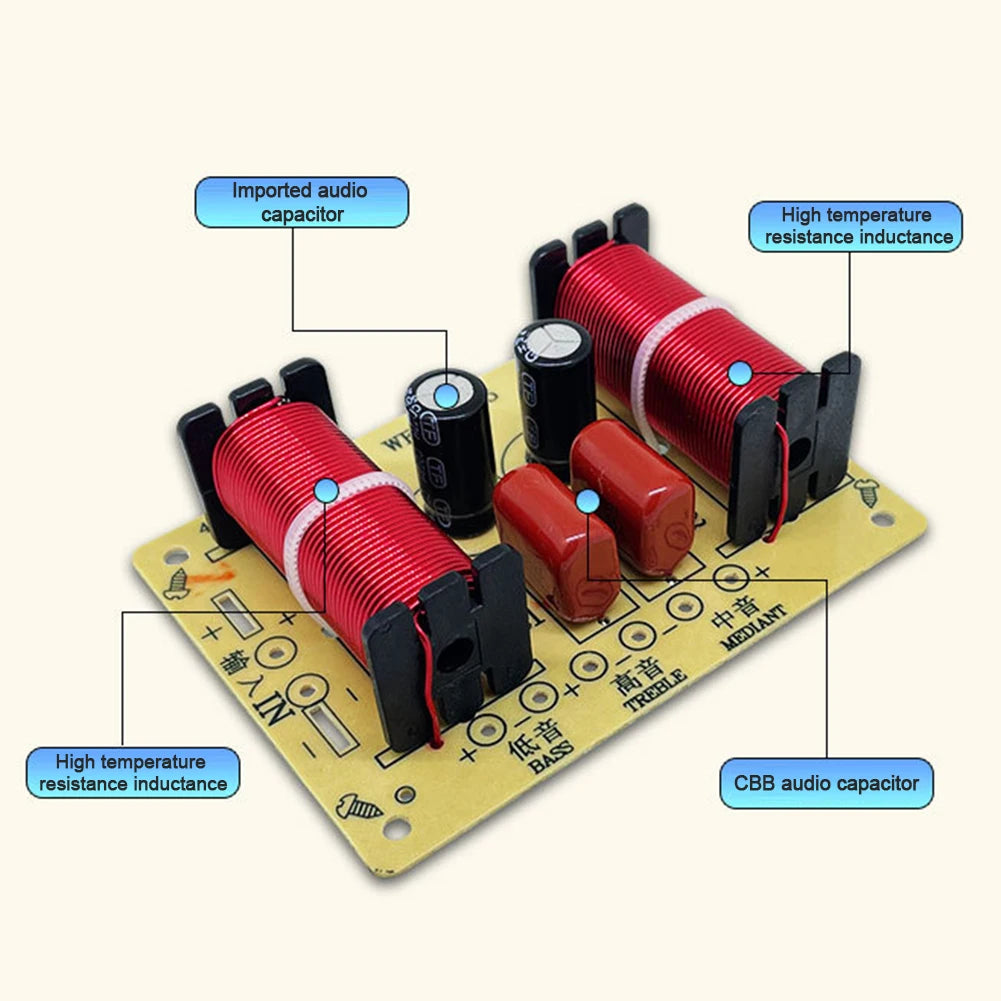

Hollow-core inductor with high heat dissipation for reliability under demanding use.
-
Special imported audio capacitors (CBB) for stable, low-distortion performance.
-
Over-current protection and a high-temperature resistant inductor to extend life and safety.
- 41mm frame inductor fixed with cable ties to prevent co-vibration and ensure steady sound reproduction.
Specs & compatibility
-
Power handling: 150W
-
Impedance: 4–8 ohms
-

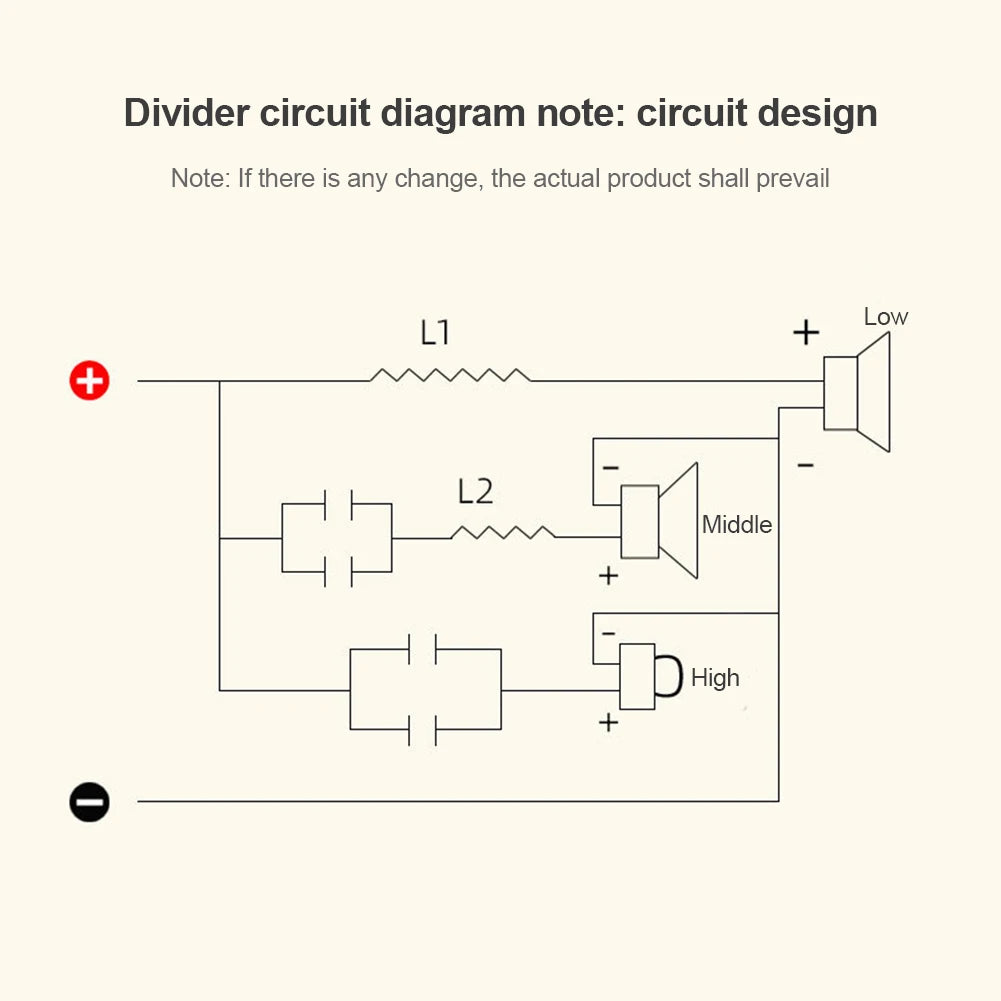

Frequency dividing points: mid-high at 4000 Hz; mid-low at 900 Hz
-
Filters: 1 high, 1 mid, 1 low
-
Suitable for: 4–11 inch speakers below 150W
-

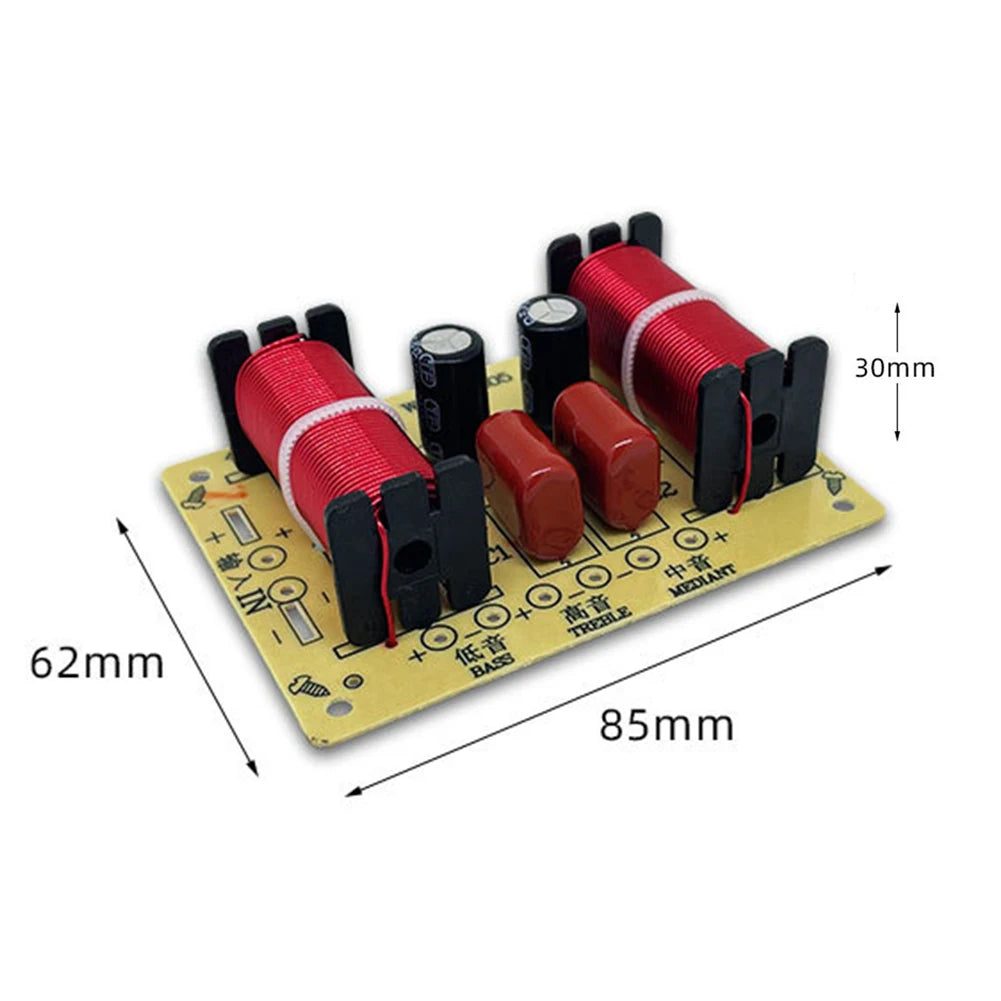

Dimensions: 85 × 62 mm (3.3 × 2.4 in); center hole spacing 75 × 52 mm (3 × 2 in)
Application: Ideal for home speaker DIY modification and upgrade, delivering clearer treble, balanced mids, and satisfying bass for a more complete listening experience.
Package contents: 1 x Speaker Crossover
Note: Color may vary slightly due to monitor and lighting differences. Please allow 1–2 cm measurement deviation due to manual measurement.
