SPECIFICATIONS

Base Size: 29*29cm/11.4*11.4in

Brand Name: NONE

Certification: CE

Disposable: No

High-concerned chemical: None

Material: Cast Iron,Carbon Steel

Origin: Mainland China

Product Overall Height: 53.5cm/21in

Smoke Outlet Diameter: 9.8cm/3.85in

Stove Port Inner Diameter: 27.5cm/10.83in, 19cm/7.48in(with 1 Stove Ring), 10.5cm/4.13in(with Two Stove Rings)

Type: Burner

With Ignition Device or Not: Not Included

Crafted from premium carbon steel with fine craftsmanship, this wood-burning stove features a robust structure and safe, user-friendly use, bringing warmth to your winter. Its large opening design simplifies fuel loading, while the heat-retardant mesh is designed for covering the smoke pipe to prevent you from scalding. With an extended 19.69-foot chimney that directs smoke outdoors, it ensures secure indoor use, allowing you to enjoy a cozy environment with peace of mind. It is ideal for camping sites, ice fishing spots, hunting camps, single/double tents, pyramid family tents, snow shelters, patios, cabins, and more.

Specifications

Material: Carbon Steel

Process: Welding

Assembly Required: Yes

Smoke Sleeve: 6m/19.69ft

Stove Port Inner Diameter: 27.5cm/10.83in, 19cm/7.48in(with 1 Stove Ring), 10.5cm/4.13in(with Two Stove Rings)

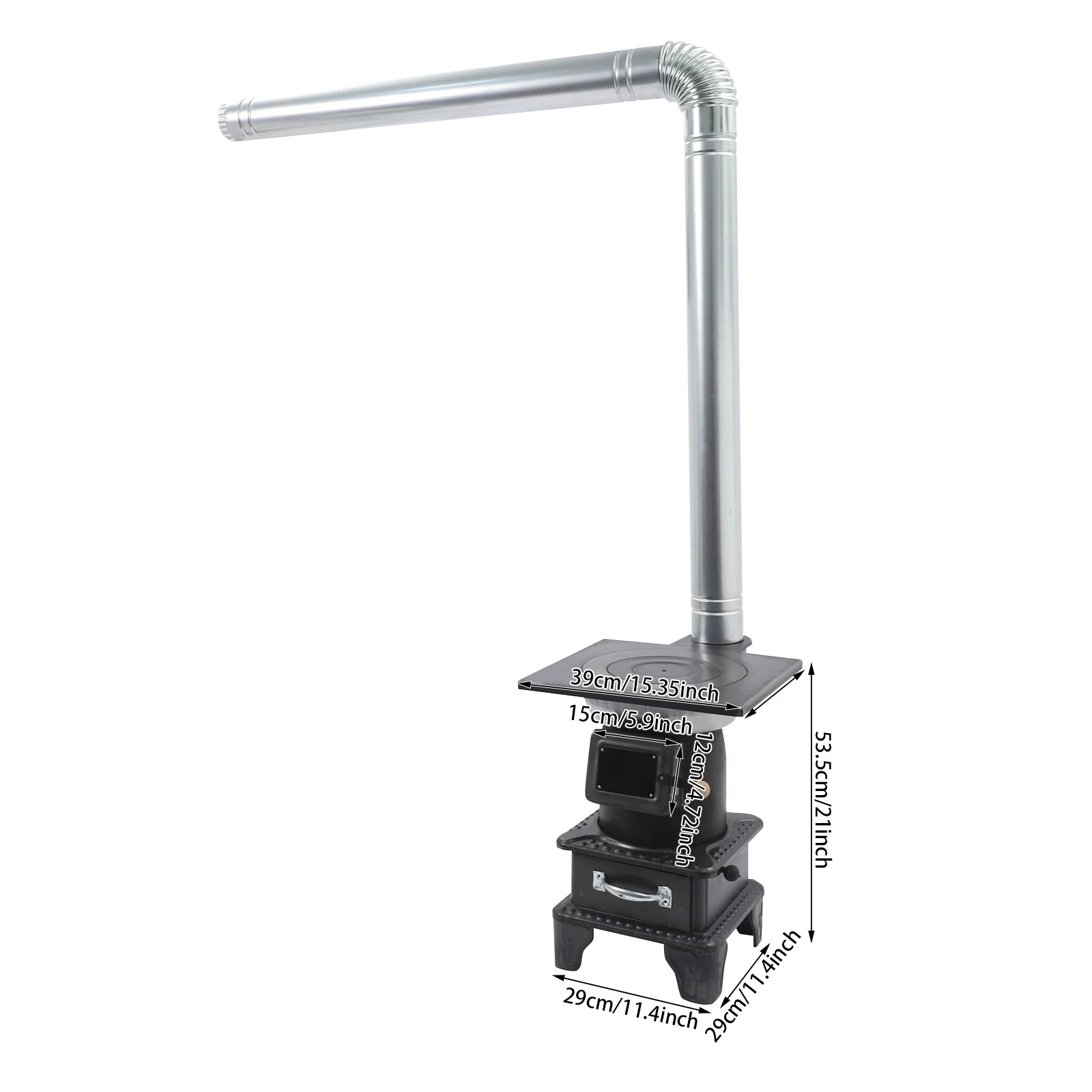

Product Overall Height: 53.5cm/21in

Base Size: 29*29cm/11.4*11.4in

Top Plate Size: 39*36cm/15.35*14.17in

Smoke Outlet Diameter: 9.8cm/3.85in

Package 1 Chimney Elbows

Package Size: 101*32*21.5cm/39.76*12.6*8.46in

Net Weight: 4.95kg/10.91lbs

Package 2 Wood Burning Stove

Package Size: 55*52.5*41.5cm/21.65*20.67*16.34in

Net Weight: 11.65kg/25.68lbs

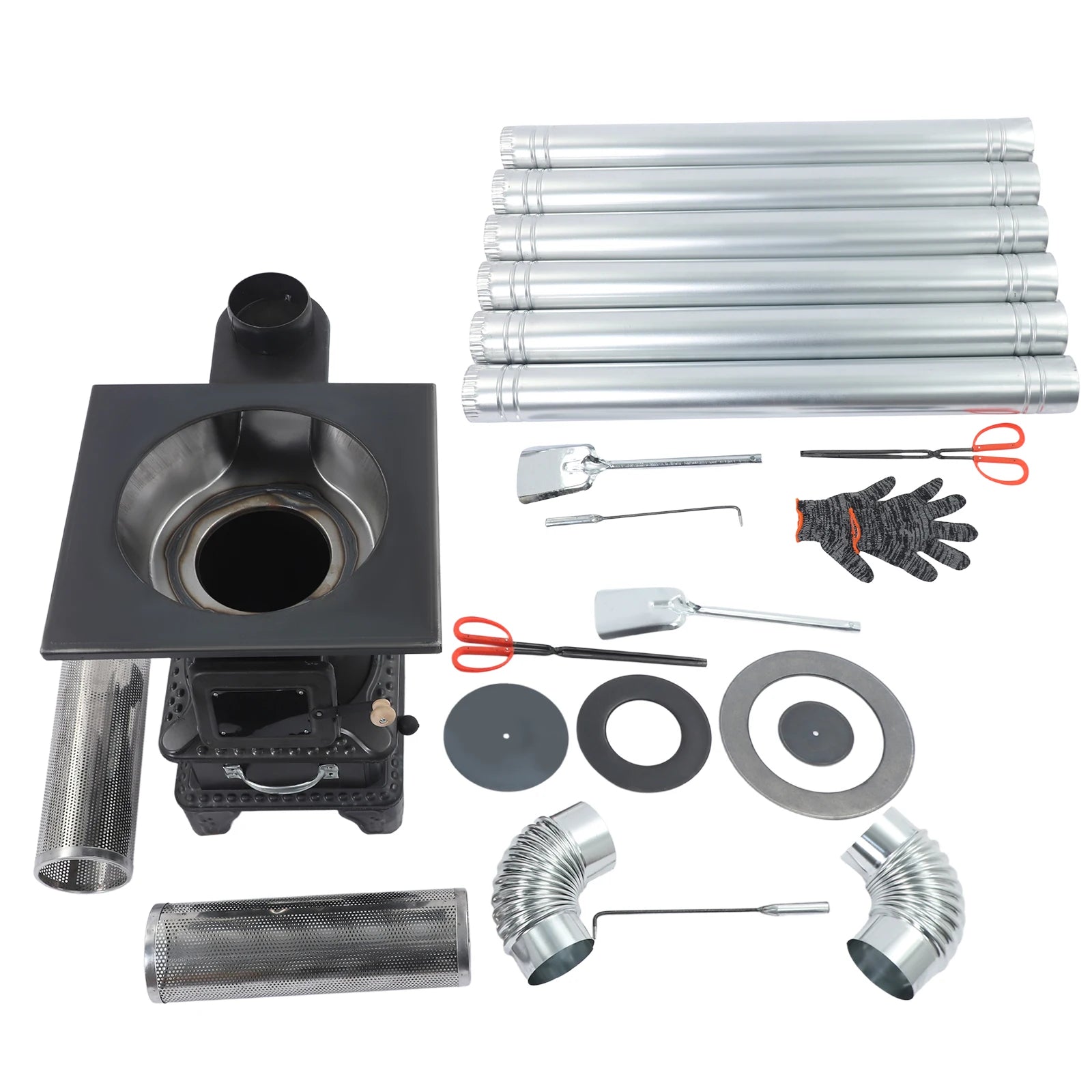

Package Included

1* Wood Burning Stove

2* Heat-retardant Meshes

2* Chimney Elbows

1* Fire Tongs

1* Shovel

1* Pair of Gloves

Other Needed Accessories

Key Features

Wide Compatibility: This stove includes two stove rings, providing three opening sizes to fit various cookware.

Simple Ash Removal: The product comes with a dedicated ash drawer to collect residue and ashes, making cleanup quick and convenient.

Stable Fuel Support: The built-in thickened fire grates provide reliable support for various solid fuels, including coal, firewood, branches, and wood chips.

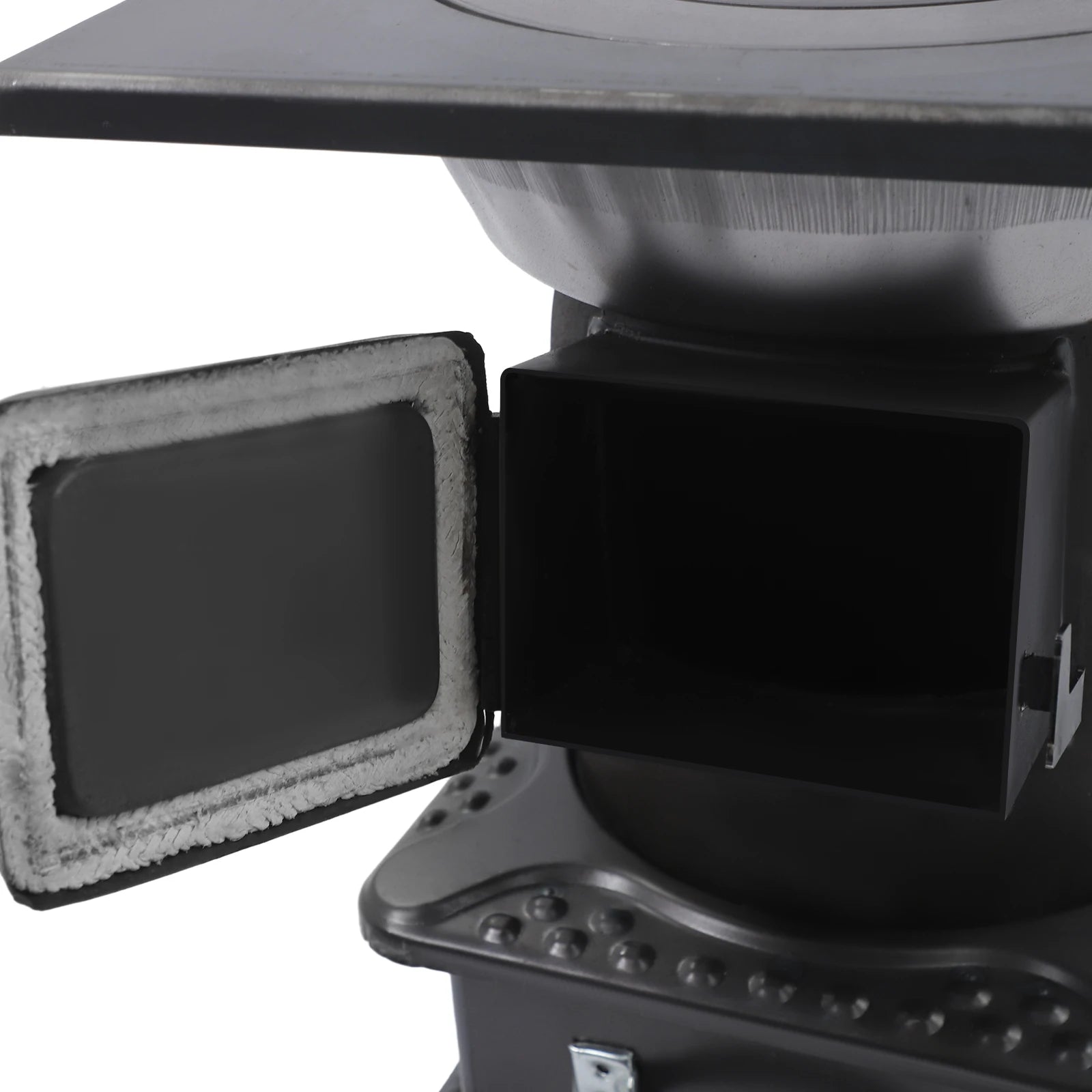

Well-Sealed Design: The thickened steel combustion chamber ensures tight sealing and fire-retardant performance. The fuel door is lined with a fire-retardant layer to maintain an airtight seal when closed, promoting efficient combustion.

Details

Ash Loosening Handle: The dedicated handle allows you to easily loosen ash and residue, preventing blockages caused by excessive buildup.

Inlet Wind Port: The side-mounted rotary knob controls the air intake vent, enabling simple adjustment of the flame intensity.

Notes

1. Please check the size carefully before ordering.

2. Please note that the stove body is coated with protective oil. For initial use, please ignite and burn it outdoors thoroughly before moving it indoors.

3. Please note that the product must be installed with a chimney during use. All smoke must be vented outdoors through the chimney while burning.

4. Please note that this stove is suitable for burning bituminous coal or firewood. If using anthracite (hard coal), honeycomb briquettes, or synthetic coal, it is necessary to apply a refractory clay or yellow clay insulation layer approximately 5mm thick inside the combustion chamber before use.

5. Please allow the slight color difference caused by the shooting light and a 1-3cm error due to manual measurement, and make sure you do not mind before you order.
